ROSINA

Exhaust gas temperature, on any spare analog input.

A K-type probe puts out about 41 µV/°C. Your ECU wants volts. These are the thing in between, potted so it can live on a firewall.

Not yet available. The first units are being built. Email us to hear when they ship.

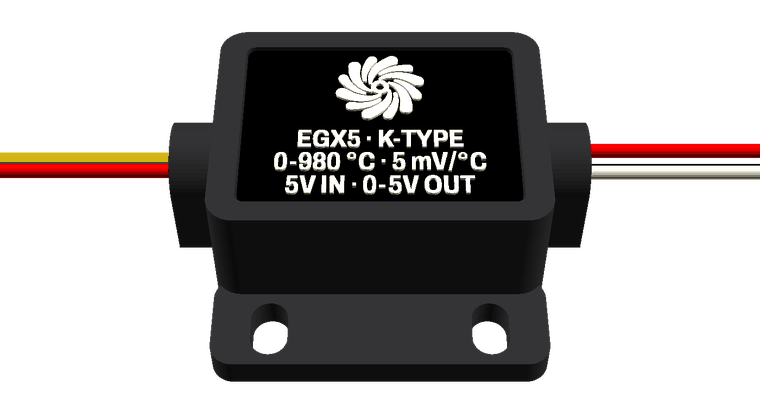

EGX5: black potted module with a Rosina Labs label cap. Thermocouple leads leave one end, output leads the other.
EGX5

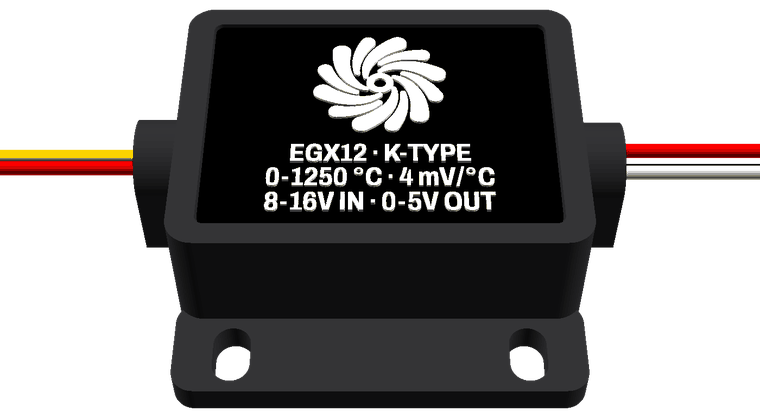

EGX12: the larger potted module with a Rosina Labs label cap.
EGX12

EGX5

Gas, turbo or naturally aspirated. 5 V sensor rail.

Range
0 – 980 °C
Out
5 mV/°C, 0 V = 0 °C
Supply
5 V
Module only$49.95

No probe — you supply your own K-type.

Notify me
Kit$89.95

Stainless probe, 5 mm, rated 1200 °C. Weld-in bung included.

+ $24.95 — M18 no-weld adapter, uses a spare O2 port

Notify me
Pro · Inconel$149.95

Inconel probe, 3/16″, sealed ungrounded tip. ±1.1 °C special limits of error, made in USA. Weld-in bung included.

+ $20 — pre-turbo 1/4″ probe

+ $24.95 — M18 no-weld adapter, uses a spare O2 port

Notify me

EGX12

Diesel, towing, sled pull. Anything over 980 °C.

Range
0 – 1250 °C
Out
4 mV/°C, 0 V = 0 °C
Supply
8 – 16 V switched
Module only$64.95

No probe — you supply your own K-type.

Notify me
Kit$114.95

Stainless probe, 5 mm, rated 1200 °C. Weld-in bung included.

+ $24.95 — M18 no-weld adapter, uses a spare O2 port

Notify me
Pro · Inconel$179.95

Inconel probe, sealed ungrounded tip, rated 1300 °C. ±1.1 °C special limits of error, 550 ms, made in USA. Weld-in bung included.

+ $20 — pre-turbo 1/4″ probe, swaged to 1/8″

+ $24.95 — M18 no-weld adapter, uses a spare O2 port

Notify me

Works with

MegaSquirt · Speeduino · Haltech · Link · AEM · Holley EFI · MaxxECU · RaceCapture · EFILive · HP Tuners — or any spare 0–5 V analog input.
